ESD Ricocal

- 10^6~10^9 surface resistivity.

- Excellent durability against repetitive soldering of more than 20,000 times.

- Excellent mechanical strength for precision machining.

- Excellent chemical resistance against soluble flux or pallet cleaner.

- Teflon-coating is not necessary to make up for durability or cleanability.

- Excellent machinability which is durable against high speed machining.

- Lead free material/ RoHS COMPLIANT

- Strong Thin Wall up to 0.5mm


ESD Ricocal
PRODUCT DETAILS APPLICATIONS

Weight Table of ESD Ricocal Sheet
Size (mm) Weight(KG/PC) Size (mm) Weight(KG/PC)
3 x 1020 x 1220 7.84 10 x 1020 x 1220 26.13
4 x 1020 x 1220 10.45 12 x 1020 x 1220 31.36
5 x 1020 x 1220 13.07 15 x 1020 x 1220 39.20
6 x 1020 x 1220 15.68 20 x 1020 x 1220 52.26
8 x 1020 x 1220 20.91 25 x 1020 x 1220 65.33

Weight Table of ESD Ricocal Sheet
Size (mm) Weight(KG/PC) Size (mm) Weight(KG/PC)
3 x 1220 x 2440 18.75 10 x 1220 x 2440 62.50
4 x 1220 x 2440 25.00 12 x 1220 x 2440 75.00
5 x 1220 x 2440 31.26 15 x 1220 x 2440 93.77
6 x 1220 x 2440 37.50 20 x 1220 x 2440 125.00
8 x 1220 x 2440 50.00 25 x 1220 x 2440 156.28

Note: stock available for 3-12mm thickness material

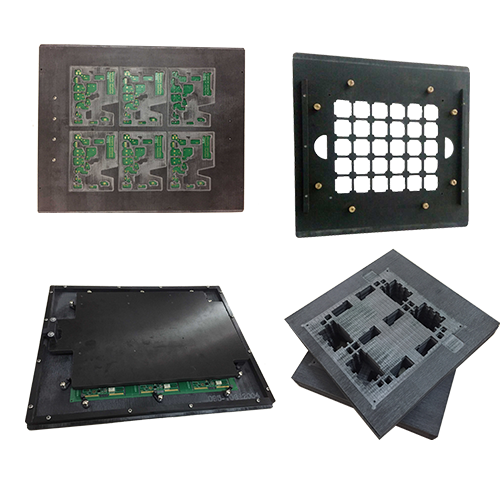

Ricocal is made by fiber glass cloth and high temperature resin. It is an ideal material for solder pallets, wave solder pallets, SMT solder pallets, SMT solder fixtures, selective solder fixtures and other specialty soldering fixtures.


Tips for machining ricocal material

1. The material of the cutter: carbide such as Tungsten Carbide +Cobalt

2. How many flutes for the cutter ? 4 flutes

3. Feed speed(cutting speed): for 3.175mm cutter, feed speed is 2000mm/min

4. Wall thickness:1mm



-SMT carrier

-Wave solder pallet

-Reflow solder pallet

-Solder paste screen printing in SMT

-PCB online testing jig

-Component protection

-Component insertion

-Pressfit fixtures
