location:Home > Products > ESD/Anti-static Series

ESD/Anti-static Series
  • ESD Polycarbonate
    ESD Polycarbonate

    Size(WidthxLength):1000*2000mm,1220*2440mmThickness:2,3,4,5,6,8,10,12,15,20mmESD polycarbonate, short for ESD PC. It is made from normal (non-ESD) polycarbonate sheet with ESD coating technics. The ESD function is in best condition when the surface resistivity is within 10^6 to 10^9 Ohm (Ω). Prior’s ESD polycarbonate sheet can effectively prevent dust accumulation, and avoid the possible damages caused by statics. There...

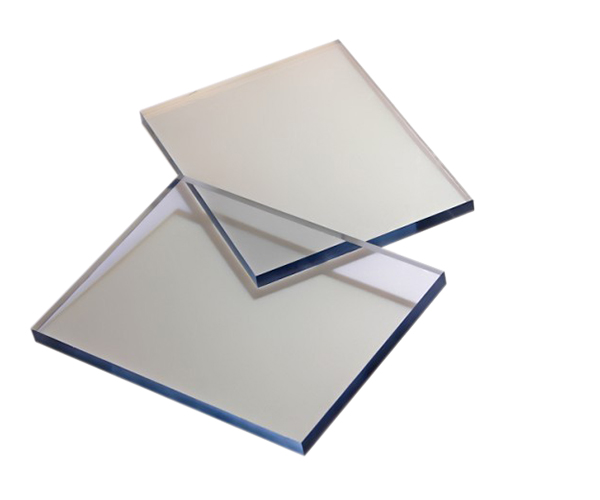

  • ESD Acrylic
    ESD Acrylic

    Size(WidthxLength):1000*2000mm,1220*2440mm Thickness: 2,3,4,5,6,8,10,12,15,20mmThis clear acrylic sheets are surface coated with an extremely thin and highly abrasion resistant dissipative film which keeps the transparency and the working properties of acrylic sheets unvaried. Equipped with a protection film on both sides can avoid damages during transportation and storage.

  • ESD Delrin
    ESD Delrin

    Size(WidthxLength):610*1220mmThickness: 6-100mmESD/Antistaticdelrin acetal sheet is made by adding carbon black and fiber, etc. during the production. The volume and surface resistivity of our product is 10^6 to 10^9. It is widely used as transmission devices such as gears, wheel, sliding track or rail, this antistatic plastic shows the best in terms of abrasion resistance and static discharging.

  • ESD Nylon
    ESD Nylon

    Size(WidthxLength):500*1000mmThickness:6-50mmNylon is the most widely used engineering plastic in the current market. With its good mechanical properties, wear resistance and self-lubricating function, it is widely used in the mechanical structures and spare parts .We can also fill the glass fiber and some other fillers to improve its properties, such as improving its rigidity, wear resistance and impact resistance.

  • ESD FR4/G10
    ESD FR4/G10

    Size(WidthxLength):1020*1220mm Thickness: 1,1.5,2,3,4,5,6,8,10,12,15,20,25,30mmThis product is a kind of laminated board formed through heat pressing after the electric industry glass fiber cloth dips into epoxy resin. It is suitable as the mechanical, electric and electronic insulation structural components which are used under room and middle temperatures with a certain mechanical performance and electric performance re...

  • ESD Bakelite
    ESD Bakelite

    Size(WidthxLength):1020*1220mm,1040*2080mm Thickness:3,4,5,6,8,10,12,15,20,25,30mmBakelite sheet,also called phenolic paper laminated sheet.It is formed by heat pressing after the paper pulp dip into phenolic resin. It is the most common laminated sheet.It is also the most widely used industrial laminated sheet.
