Solder Pallet Series

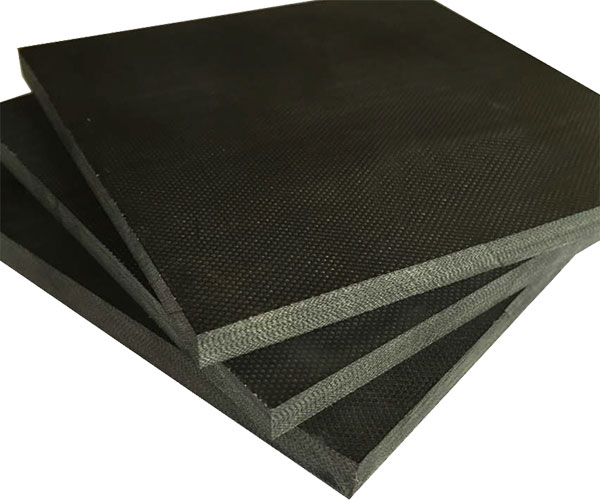

  • Durostone
    Durostone

    Size(WidthxLength):1020x1220mm,1220x2440mmThickness:3,4,5,6,8,10,12,15,20,25,30mmDurostone is a fiber-reinforced plastic for mechanical and electrical applications. With good performance against electric arc and tracking, it is an ideal material for solder paste printing,SMT process,reflow soldering and wave soldering.

  • Ricocal
    Ricocal

    Size(WidthxLength):1220x2440mmThickness:3,4,5,6,8,10,12,15,20,25,30mmRicocalis an ideal material forsolder pallets, wave solder pallets, SMT solder pallets, SMT solder fixtures, selective solder fixtures and other specialty soldering fixtures.

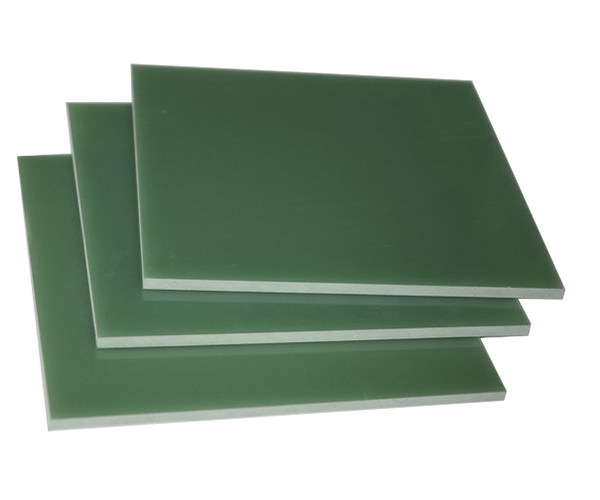

  • FR4-G10
    FR4-G10

    Size(WidthxLength):1020x1220mm,1220x2440mmThickness: 0.5-100mmThis product is a kind of laminated board formed through heat pressing after the electric industry fiolax cloth dips into epoxy resin. It is suitable as the mechanical, electric and electronic insulation structural components which are used under room and middle temperatures with a certain mechanical performance and electric performance requirement.

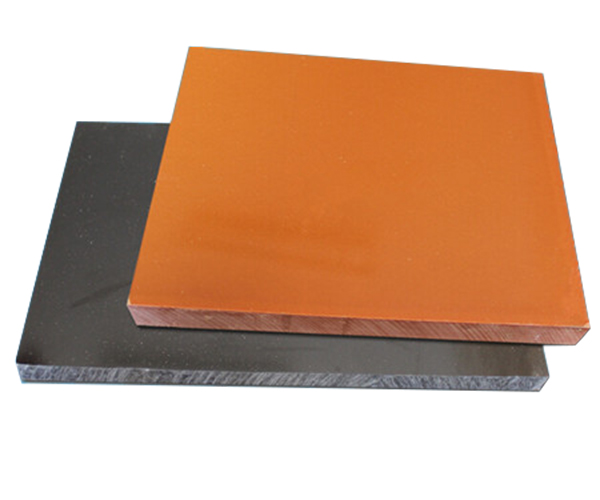

  • Bakelite
    Bakelite

    Size(WidthxLength):1040x2080mmThickness:3-60mm Bakelite sheet,also called phenolic paper laminated sheet.It is formed by heat pressing after the paper pulp dip into phenolic resin. It is the most common laminated sheet.It is also the most widely used industrial laminated sheet.

  • Holddown Clamp
    Holddown Clamp

    -Designed specifically for use in wave solder operations-Mostly made from molded plastic part, spring, screws and sleeve.-Working temperature: 200 degree, max 280degree (10~20s).-The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellentsolder tin.

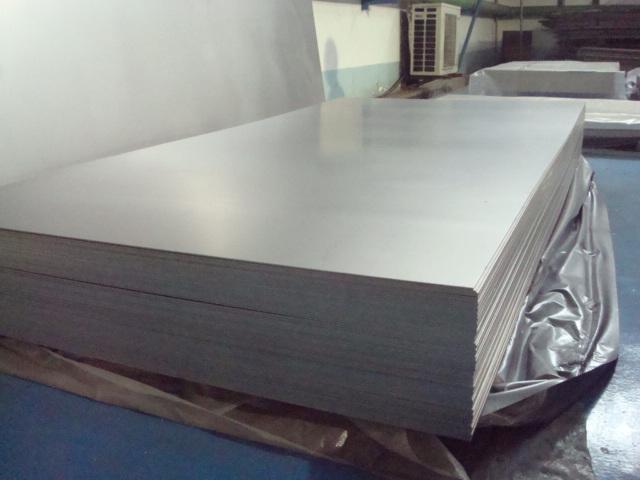

  • Titanium Plate
    Titanium Plate

    Size(WidthxLength):1030x2100mmThickness: 1,2,3,4,5,6,8,10mmTitanium is a new metal material. With stable chemical properties, good high temperature and low temperature resistance, good chemical resistance, high strength and low density, it is named as ''space metal''.

  • Fiber Glass Block
    Fiber Glass Block

    Our fiber glass block has below sizes available. There are white and black colors.8*8*2000mm10*10*2000mm10*12*2000mm10*15*2000mmIt is a new material made by reinforced glass fiber.Due to high production volume and excellent performance,it has replaced side strips which are made by bakelite and FR4 material.It is specially used in wave solder pallet,PCB fixture and jigs. The main function is to block...
