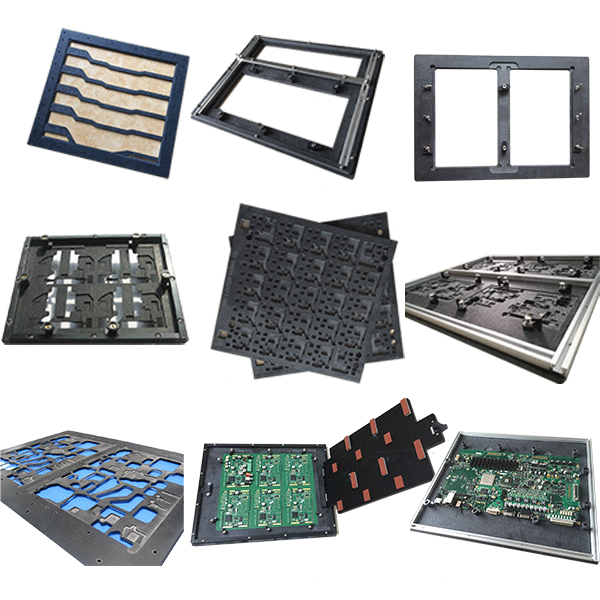

Wave solder pallet (also called wave solder carrier or wave solder fixture) is like a protection clothing on PCB. The wave solder pallet carrys the PCB and protect the populated SMD components and sensitive connectors. Then the solder waves will only solder the points that need soldering.

We have been manufacturing wave solder pallets for EMS companies since year 2010. Each pallet needs to pass three rounds of inspection before shipping.

Our advantages

-Price: With our own pallet materials and CNC machines, we can provide the most competitive price to our clients.

-Quality: With rich production experience, our pallets have been widely approved by our clients both home and abroad. The precision can be controled within -/+0.02mm

-Lead time: 3-5 days for samples, 7-10 days for bulk order.

-Professional sales team: Our sales engineer know well about material&machining. You can discuss any engineering issue with us freely.

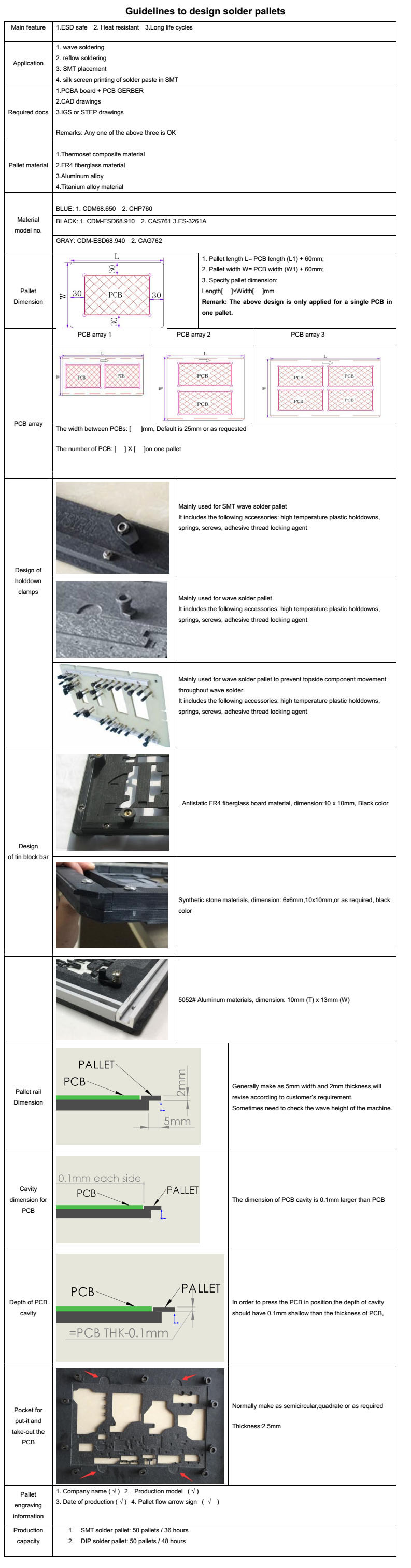

We can also design pallets as per client's requirement. Below information are necessary for the pallet design.

1.2D drawing(.dwg or PDF) or 3D drawing(.STEPor .IGS) of wave solder pallets

2.Gerber file of  PCB bare board+ Loaded PCB sample(PCB board with electronic components)

5 ways to maximize the life of solder pallet fixture

What are the most important things to pay attention to while using solder pallet fixture?

1. Gentle care and proper handling. Fracture damage most often occurs while transferring the unit. To avoid damage to the protective wall, as well as other parts of the solder pallet fixture, it is important to have a dedicated management position.

2. Store the solder pallet fixtures in an upright position. Deformations can be happened if the unit is improperly stored. To avoid deformations caused by stacking it is recommended that units be stored on shelves.

3. Avoid strong acid and alkali contact. Exposure to strong acids or bases will easily corrode the solder pallet fixture. To avoid this a neutral flush is recommended.

4. Avoid using alcohol and alcohol-based cleaning agents. Saponifiers are the recommended cleaning agent.

5. Shockproof transportation. Units can receive shock damage while being transported through the A shockproof cart is recommended.
