Holddown Clamp

-Designed specifically for use in wave solder operations

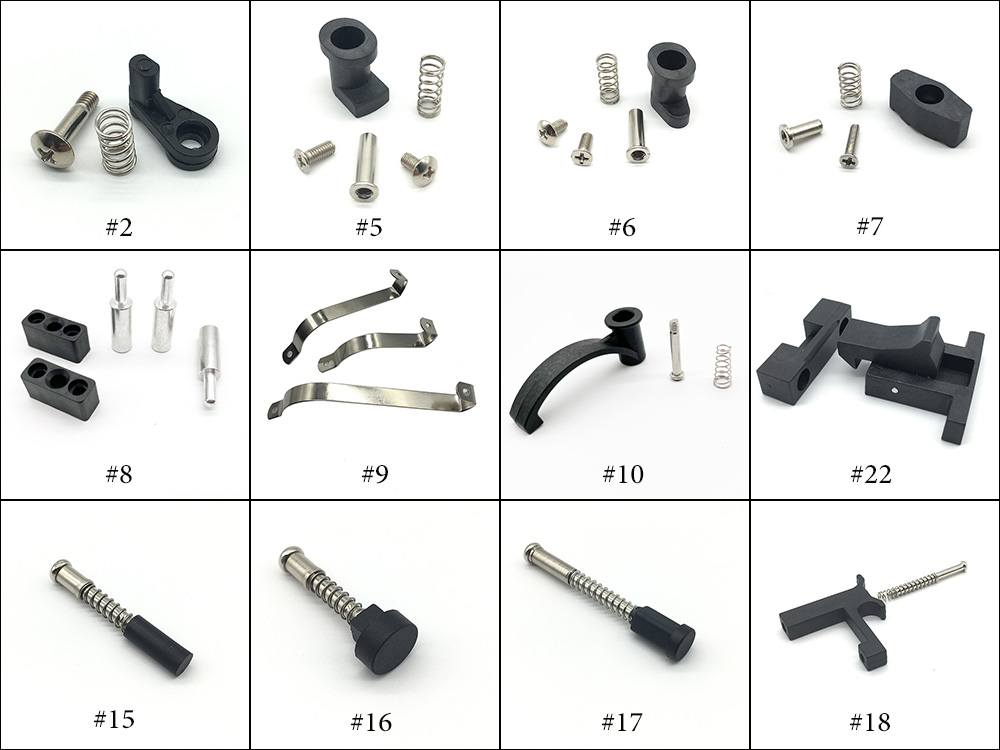

-Mostly made from molded plastic part, spring, screws and sleeve.
-Working temperature: 200 degree, max 280degree (10~20s).
-The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent solder tin.


Holddown Clamp
PRODUCT DETAILS APPLICATIONS

-Designed specifically for use in wave solder operations
-Mostly made from molded plastic part, spring, screws and sleeve.
-Working temperature: 200 degree, max 280degree (10~20s).
-The action is to press PCB board to protect it from floating and lifting under wave solder process so as to create excellent solder tin.

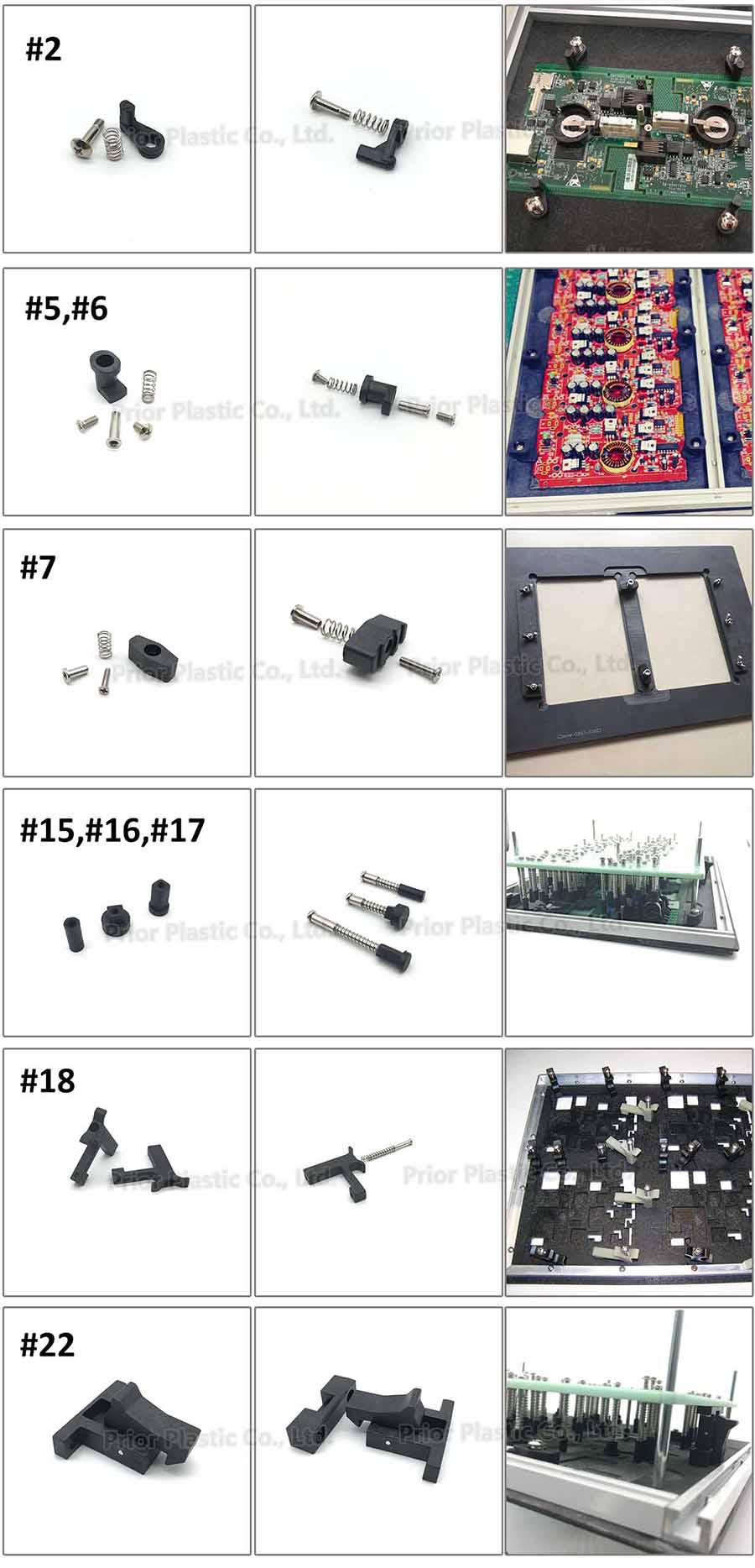

Used to be positioned PCB substrate in wave solder pallets, fixtures and stencils to protect PCB substrate from floating and lifting.
